Home >> Application >>Industrial >>Industrial Insulation >> HUAYUAN Industrial Insulation New Rock Wool Rolled Felt
Application

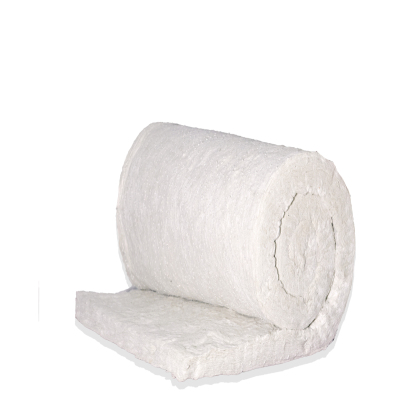

HUAYUAN Industrial Insulation New Rock Wool Rolled Felt

  • Introduction
  • Peculiarity
  • Specifications
  • Index
  • Application

HUAYUAN new industrial rock wool felt rolled using high-quality basalt, dolomite and other natural ores as the main raw material, high-temperature melting, high-speed centrifugal filament fibers, the formation of fibers by a special process of intertwined structure, molded by heat curing and made with a certain strength of industrial thermal insulation products. The product is asbestos-free, without any binding agent, the fiber is thin and flexible, can be well adhered to a variety of irregular equipment and piping, effectively reduce the seams, reduce thermal bridging. Low chlorine products can be produced according to customer requirements, and can be laminated with aluminum fiber cloth, aluminum foil and other veneer materials to meet the needs of different application scenarios of thermal insulation, noise reduction, fire prevention and personal protection.

Product Specification

Product Name

HUAYUAN Industrial Insulation New Rock Wool Rolled Felt

Density,kg/m³

80/90/96/110/120/128

Specification,mm

7200/3600*610*20/30/50

Package and Quantity

Plastic coated woven bag,2rolls/bag


Product Index

Property

Unit

8 0 Kg/m³

1 0 0 Kg/m³

Thermal Conductivity(70℃)

W/m.k

≤0.040

≤0.040

Tensile Strength

Kpa

≥30

≥30

Shot Content(φ≥0.212mm)

%

≤15

≤15

Linear Shrinkage(650℃)

%

≤2

≤2

Mass Hygroscopicity

%

≤0.5

≤0.5

Hydrophobicity

%

≥98

≥98

Chloride Content

PPM

≤10

≤10

Combustion Performance

--

Class A1non-combustible, no combustion fallout,toxic smoke, sustained flame 0 seconds

Environmental Protection

--

Asbestos-free, formaldehyde-free,no CFCSHFCSHCFCS

Corrosion

--

Non-corrosive


HUAYUAN industrial insulation new rock wool felt is mainly used for petrochemical, power plants and other large caliber pipelines, large tanks, containers, boilers and ducts of thermal insulation, fire prevention and sound absorption and noise reduction, but also at high temperatures and vibration of the place or fire requirements of the place to use higher.
